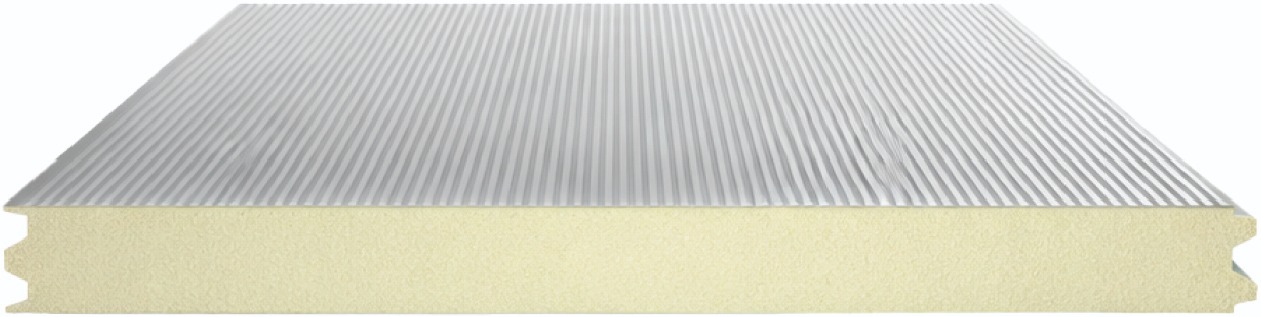

Signature ColdCore™ Wall is a high-performance insulated sandwich panel designed for enhanced joint strength and thermal efficiency. It is ideal for applications requiring strong sealing, durability, and consistent insulation performance.
Effective Width
1000/1150mm
Thickness
80/100/120/150mm
Panel Length
2.5m to upto 15m
Core Material
PU/PIR
Density (PU)
38–40(± 2) kg/m³
Density (PIR)
40–42(± 2) kg/m³
Thermal Conductivity
PU: 0.022–0.024, PIR: 0.020–0.022
Sheet Thickness
0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.80mm
| Thickness | Density(kg/m³) | λ(w/mK) | U-Value(W/m²K) | R-Value(m²K/W) |
|---|---|---|---|---|
| 80mm | 38–40(± 2) | 0.022–0.024 | 0.28–0.30 | 3.30–3.60 |
| 100mm | 38–40(± 2) | 0.022–0.024 | 0.24–0.26 | 4.10–4.50 |
| 120mm | 38–40(± 2) | 0.022–0.024 | 0.20–0.22 | 5.00–5.50 |
| 150mm | 38–40(± 2) | 0.022–0.024 | 0.15–0.17 | 6.25–6.80 |
| Thickness | Density(kg/m³) | λ(W/mK) | U-Value(W/m²K) | R-Value(m²K/W) |
|---|---|---|---|---|
| 80mm | 40–42(± 2) | 0.020–0.022 | 0.26–0.28 | 3.80–4.20 |
| 100mm | 40–42(± 2) | 0.020–0.022 | 0.21–0.23 | 4.80–5.20 |
| 120mm | 40–42(± 2) | 0.020–0.024 | 0.17–0.19 | 6.00–6.50 |
| 150mm | 40–42(± 2) | 0.020–0.022 | 0.12–0.14 | 7.50–8.10 |
| Thickness | 0.40mm | 0.50mm | 0.60mm |
|---|---|---|---|
| 80mm | 3.2m | 4.0m | 4.5m |
| 100mm | 4.0m | 5.0m | 5.5m |
| 120mm | 4.8m | 6.0m | 6.5m |
| 150mm | 5.5m | 7.2m | 8.0m |
Closed Cell Content
PU(≥ 90%) / PIR(≥ 95%)
Water Absorption
PU(≤ 2%) / PIR(≤ 1.5%)
Vapour Resistance
PU(50–100) / PIR(100–150)
Operating temp
PU(-40°C to +80°C) / PIR(-50°C to +120°C)
Fire Class
PU(B2/B3) / PIR(B1/FR)Industrial Factories
Warehouses & Logistics Buildings
Power Plants
Commercial & Infrastructure Projects
Discover how our innovative and sustainable solutions can transform your projects. Contact us today to explore our range of products and find the perfect fit for your needs.
