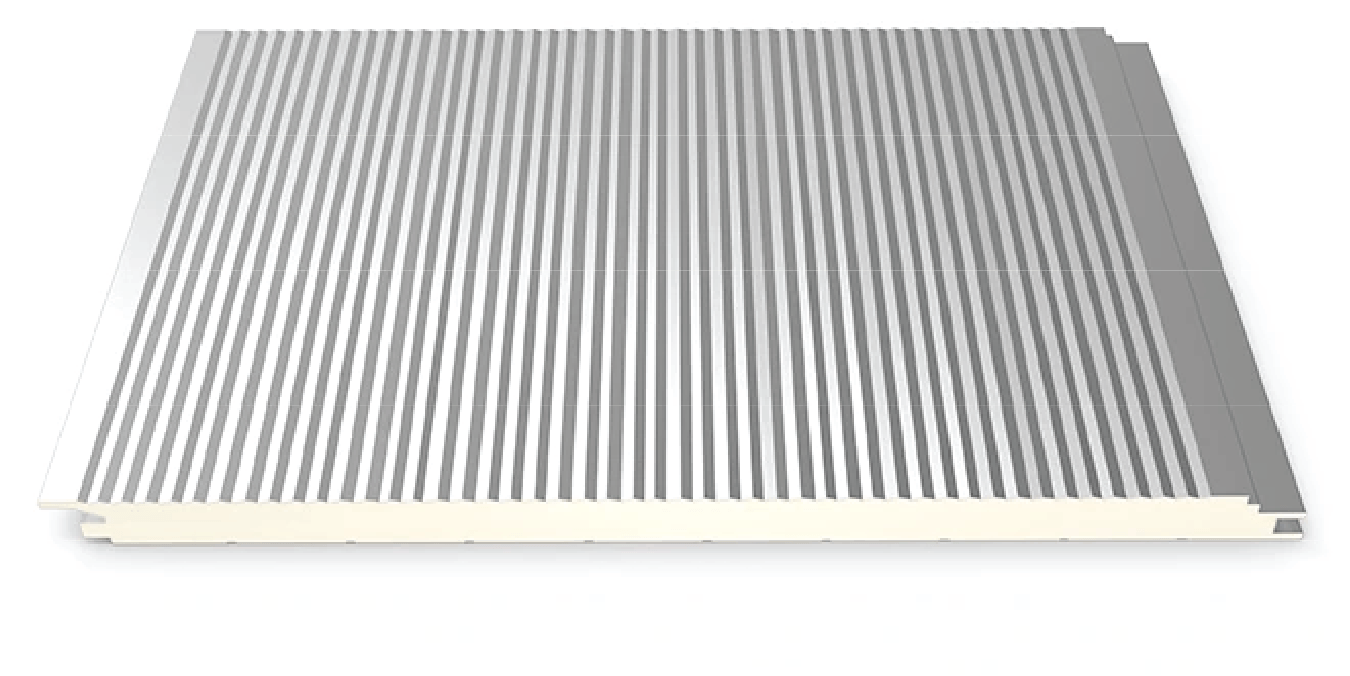

Signature SeamLex™ is a high-performance insulated wall sandwich panel designed for industrial, commercial, and prefab buildings. It offers excellent thermal insulation, durability, and design flexibility. Featuring a Hidden Screw Joint system, it provides a clean, seamless look while enhancing weather resistance and long-term performance.
Effective Width
1000mm
Thickness
50/80/100mm
Core Material
PU/PIR
Panel Length
2.5m to upto 12m
Sheet Thickness
0.30, 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.80mm
Metal Facing
PPGL/PPGL/SS 304/Aluminum
| Thickness | Density(kg/m³) | λ(w/mK) | U-Value(W/m²K) | R-Value(m²K/W) |
|---|---|---|---|---|
| 50mm | 38–40(± 2) | 0.022–0.024 | 0.40–0.45 | 2.20–2.50 |
| 80mm | 38–40(± 2) | 0.022–0.024 | 0.28–0.30 | 3.30–3.60 |
| 100mm | 38–40(± 2) | 0.022–0.024 | 0.24–0.26 | 4.10–4.50 |
| Thickness | Density(kg/m³) | λ(W/mK) | U-Value(W/m²K) | R-Value(m²K/W) |
|---|---|---|---|---|
| 50mm | 40–42(± 2) | 0.020–0.022 | 0.36–0.40 | 2.50–2.80 |
| 80mm | 40–42(± 2) | 0.020–0.022 | 0.26–0.28 | 3.80–4.20 |
| 100mm | 40–42(± 2) | 0.020–0.022 | 0.21–0.23 | 4.80–5.20 |
| Thickness | 0.40mm | 0.50mm | 0.60mm |
|---|---|---|---|
| 50mm | 3.2m | 3.7m | 4.1m |
| 80mm | 4.0m | 4.6m | 5.0m |
| 100mm | 4.5m | 5.1m | 5.6m |
Closed Cell Content
PU(≥ 90%) / PIR(≥ 95%)
Water Absorption
PU(≤ 2%) / PIR(≤ 1.5%)
Vapour Resistance
PU(50–100) / PIR(100–150)
Operating temp
PU(-40°C to+80°C) / PIR(-50°C to+120°C)
Fire Class
PU(B2/B3) / PIR(B1/FR)Industrial Buildings
Cold Storage & Refrigeration
Commercial Buildings
Clean Rooms & Pharma Units
Prefabricated Structures
Agricultural Buildings
Data Centers & IT Facilities
Residential & Hospitality Projects
Discover how our innovative and sustainable solutions can transform your projects. Contact us today to explore our range of products and find the perfect fit for your needs.
